Rose S 4000-E Workstand Up To 50 Kg With Tool Tray

Robust, practical and easy to transport. – With an incredible 50 kg load capacity, the S 4000-E by ROSE is even stable enough for working on heavy e-bikes. What’s more, it also easily withstands high downward pressure when working on tight screw connections. When you see this aluminium workstand with its solid oversized tubes, you can hardly believe it only weighs 5 kilos. With three simple steps, the repair stand can be folded to compact dimensions in no time at all, so that it can be stored in the high-quality transport bag. Of course, it can be reassembled just as fast and without tools for the next use. This makes the professional workstand by ROSE perfectly suitable for universal use in the workshop or as a mobile assembly station at events and competitions.

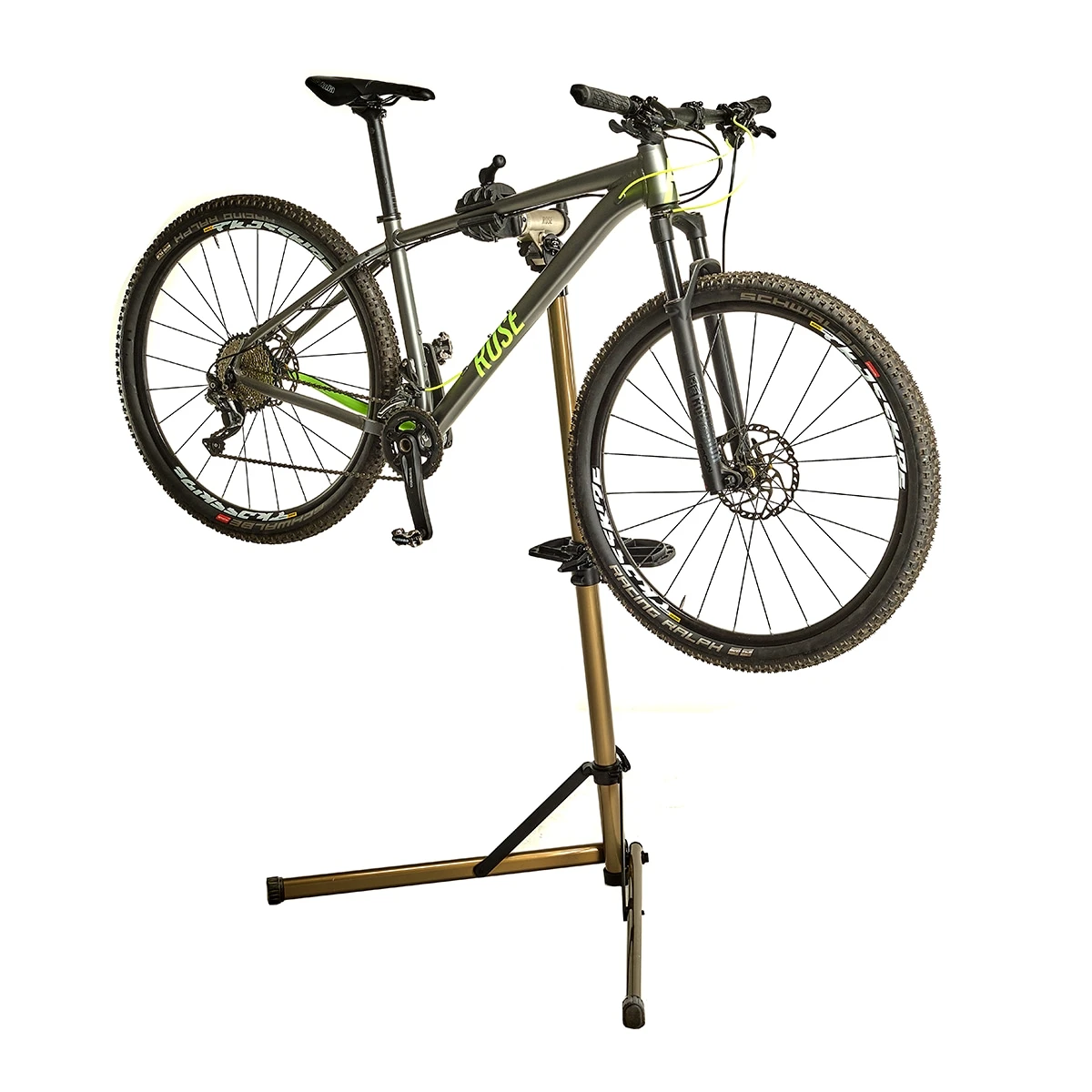

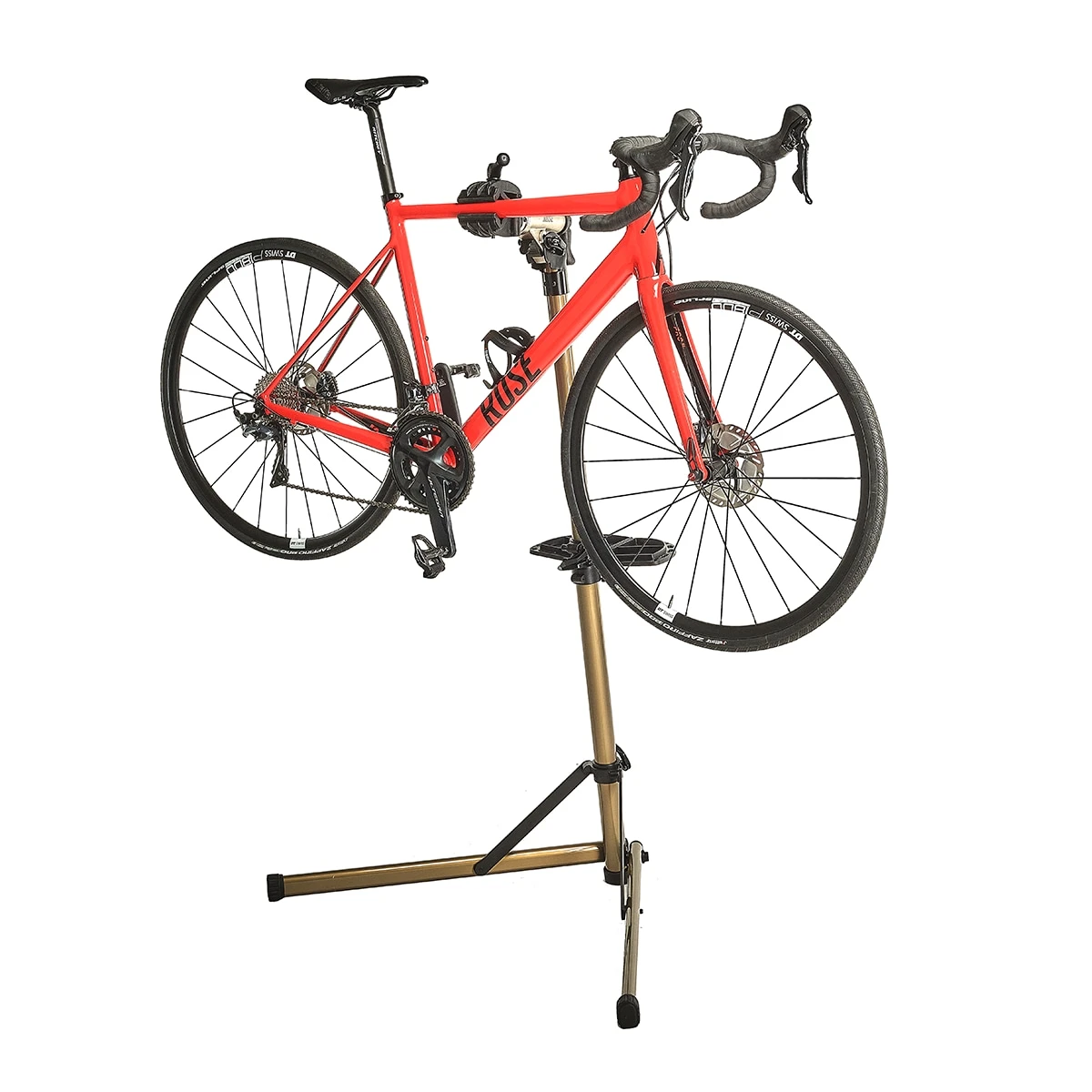

The foldable S 4000-E repair stand impresses with high stability, reliable handling and a small pack size. Solid upper tubes with stabilising diagonal struts ensure a particularly high level of torsional and stability on almost all surfaces. A telescopic tube allows you to precisely adjust the working height up to a clamping height of around one and a half metres. Between the rubberised clamping jaws, the rotating claw holds your bike securely in position at its frame or seat post. It can be held either horizontally, vertically or at a desired angle of rotation for ideal alignment and relaxed working.

You will surely appreciate the high-end S 4000-E bike workstand by ROSE as a reliable help for working on your bike.

Details:
• Stable workstand for repair, maintenance and care
• For bike frames with various tube diameters and shapes
• Also suitable for heavy e-bikes / e-MTBs, thanks to high load capacity
• Infinitely adjustable working height with smooth pullout
• Anti-twist telescopic rod with sliding guide
• Particularly rigid construction with 50 mm standpipe
• Easy, tool-free adjustment
• Quick-release system for legs, height adjustment and arm
• Additional safety clamp against unintentional lowering

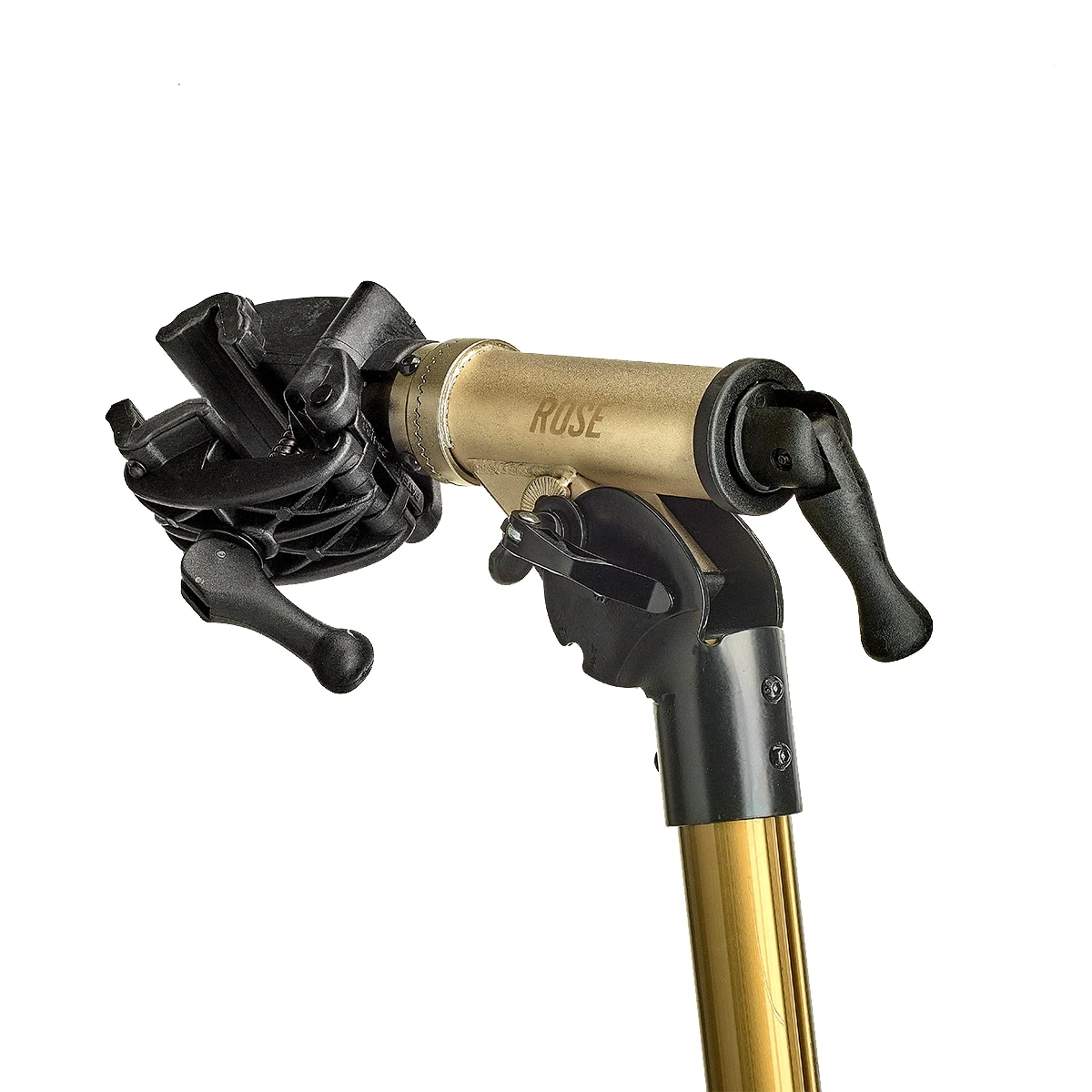

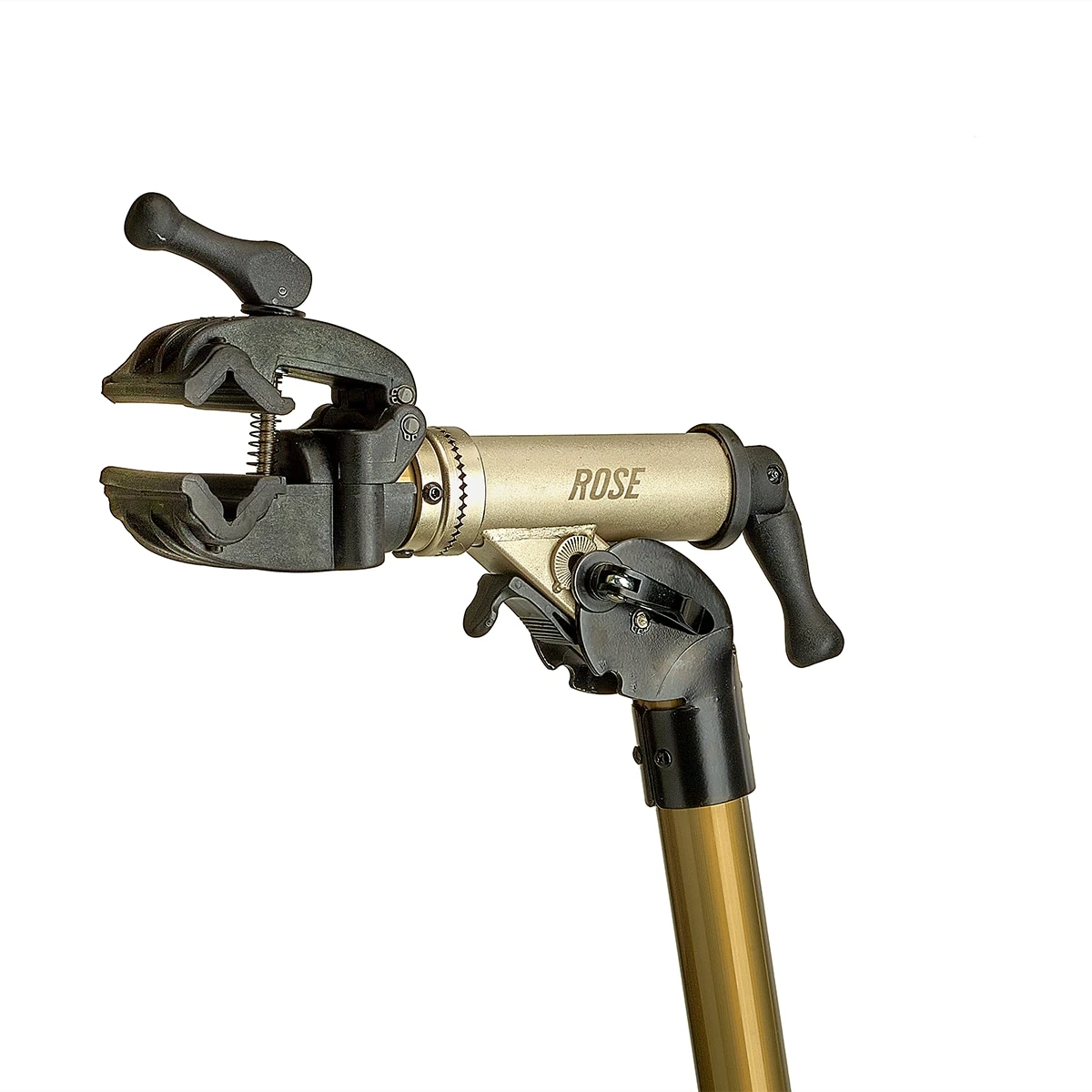

• 360° rotatable clamping head with fine toothing in 9° steps
• Optimal alignment for an ergonomic posture
• Reinforced, strong retaining claw on arm
• Fits bike frames with tube diameters of approx. 20 – 55 mm
• With horizontal jaw adjustment for optimum tube clamping
• Clamping pressure can be precisely adjusted with ergonomic rotary knob
• Wide rubberised jaws for even pressure distribution
• Secure clamping with cam-type clamp and quick-release mechanism

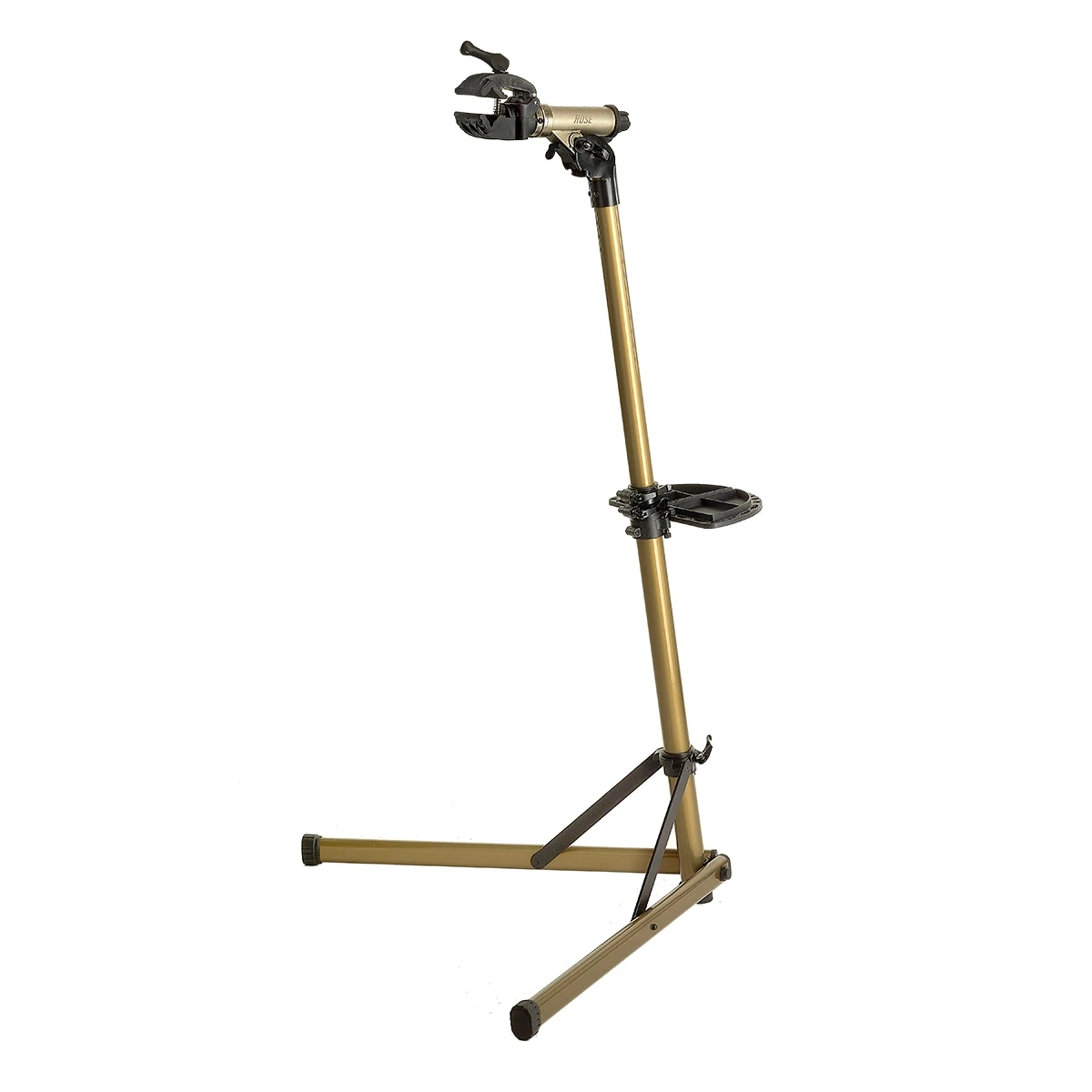

• Tripod with three-point support and diagonal struts for high stability
• Non-slip rubber feet
• Easy (un)folding of legs
• Locking/releasing lever at the arm with automatic locking
• Lightweight aluminium frame with shockproof paint
• Can be folded down to a small size
• Small pack size for easy transport

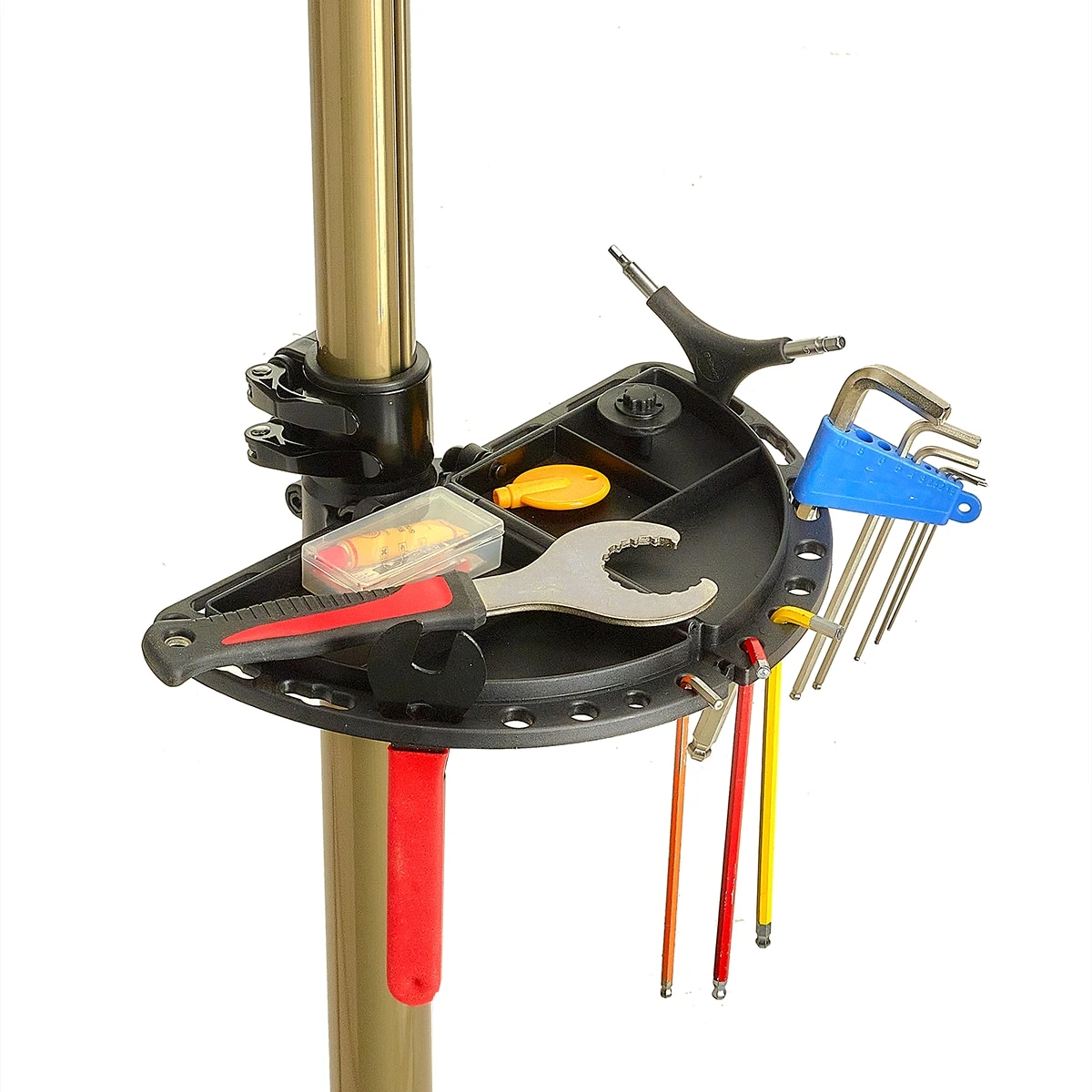

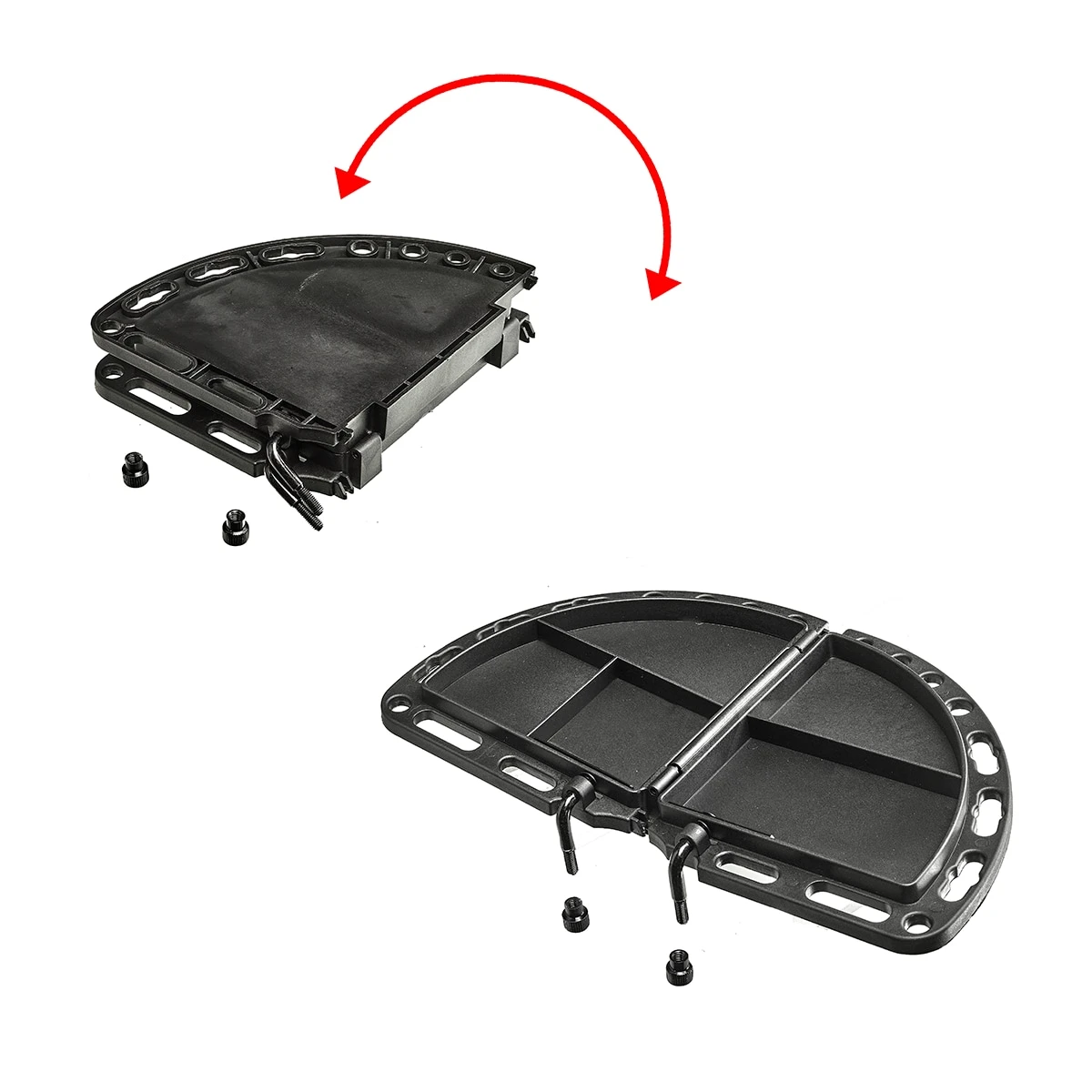

• Includes plug-in tool tray
• Comes with transport bag

Technical details:
• Material: aluminium, steel, plastic
• Material bag: nylon
• Carrying load: max. 50 kg (centrally over legs)
• Working height: approx. 97 – 149 cm (floor – centre clamp jaw)
• Rotation of clamp: 360°
• For tube Ø from approx. 20 to 55 mm
• Width of clamp jaws: approx. 85 mm
• Stand dimensions (HxWxD): approx. 103 x 159 x 68 cm
• Transport dimensions: approx. 100 x 24 x 19 cm
• Weight: approx. 4.95 kg

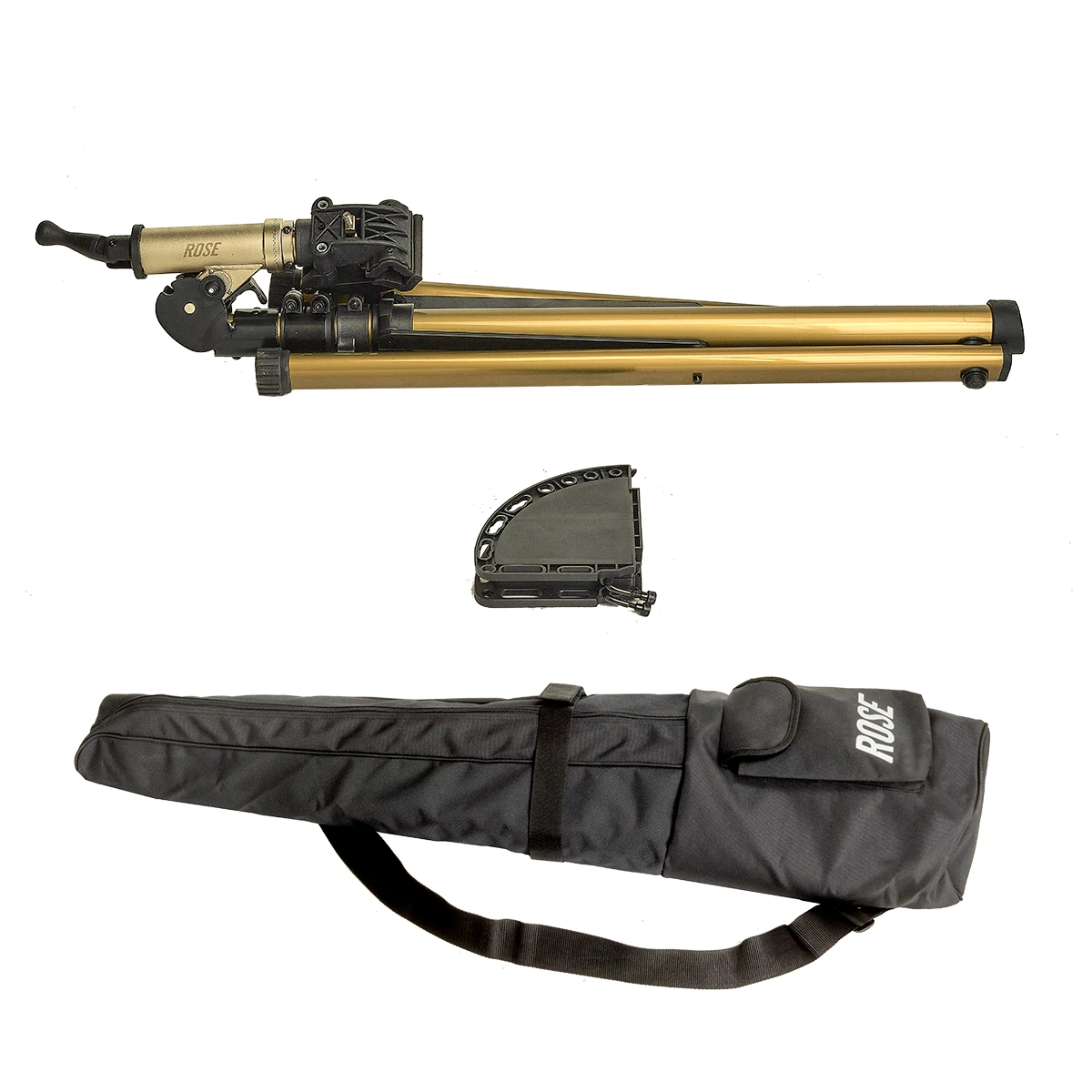

In the box:
• 1 ROSE S 4000-E workstand
• 1 tool tray
• 1 transport bag

Tip:
Spare rubbers for the clamping jaws of the retaining claw can be found under prod. code 234778801.

The ROSE S 4000-E workstand was tested by the German magazine MountainBIKE (issue 11/2022) and is their purchase tip.

Verdict (translated from German): “The Rose is very similar to the Contec, but has a higher quality finish. The arm is more stable, which avoids twisting. Highest load capacity in the test.”

The German magazine RoadBike 01-02/23 gives it the rating: very good

Manufacturer: ROSE Bikes GmbH, Schersweide 4, 46395 Bocholt, Germany, www.rosebikes.de
