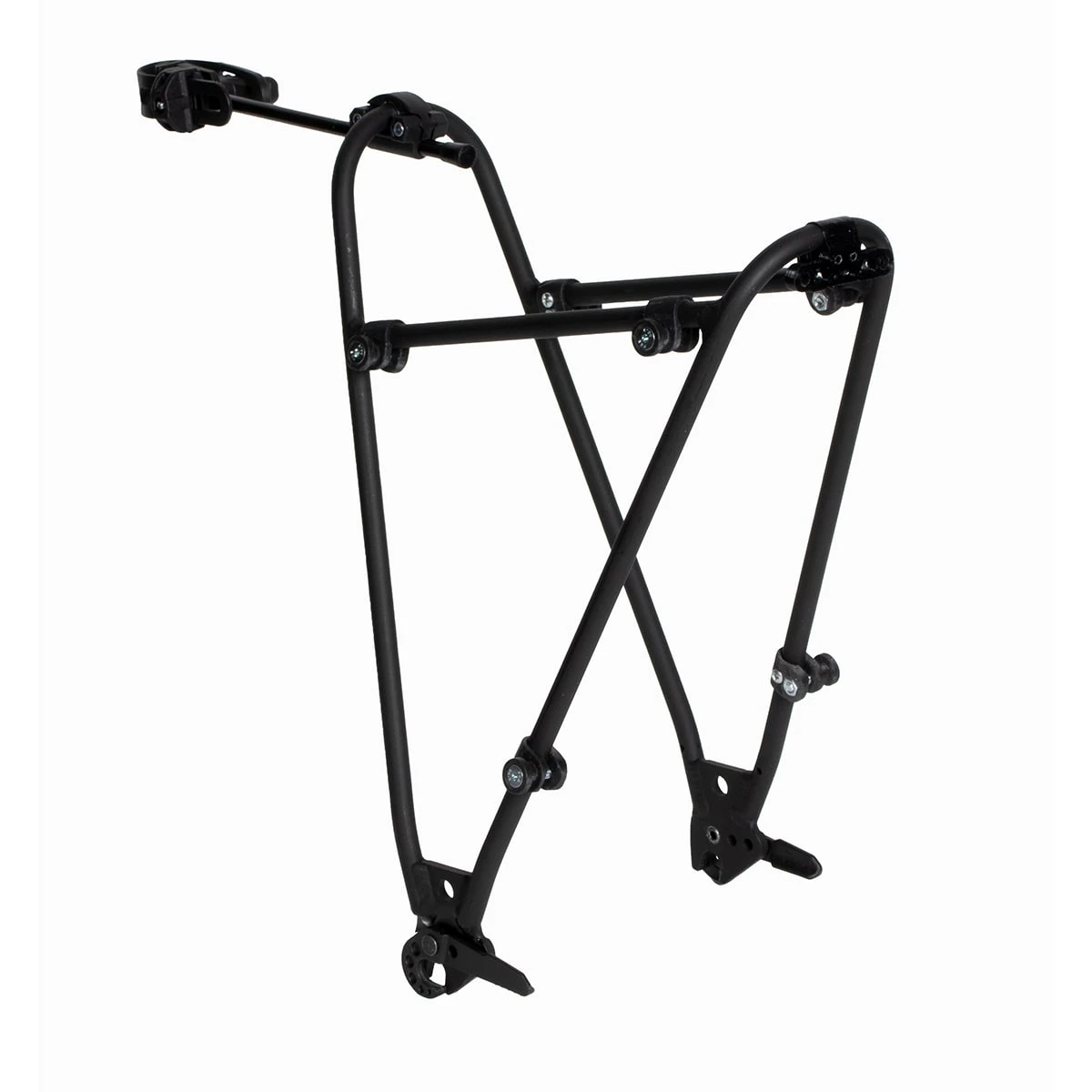

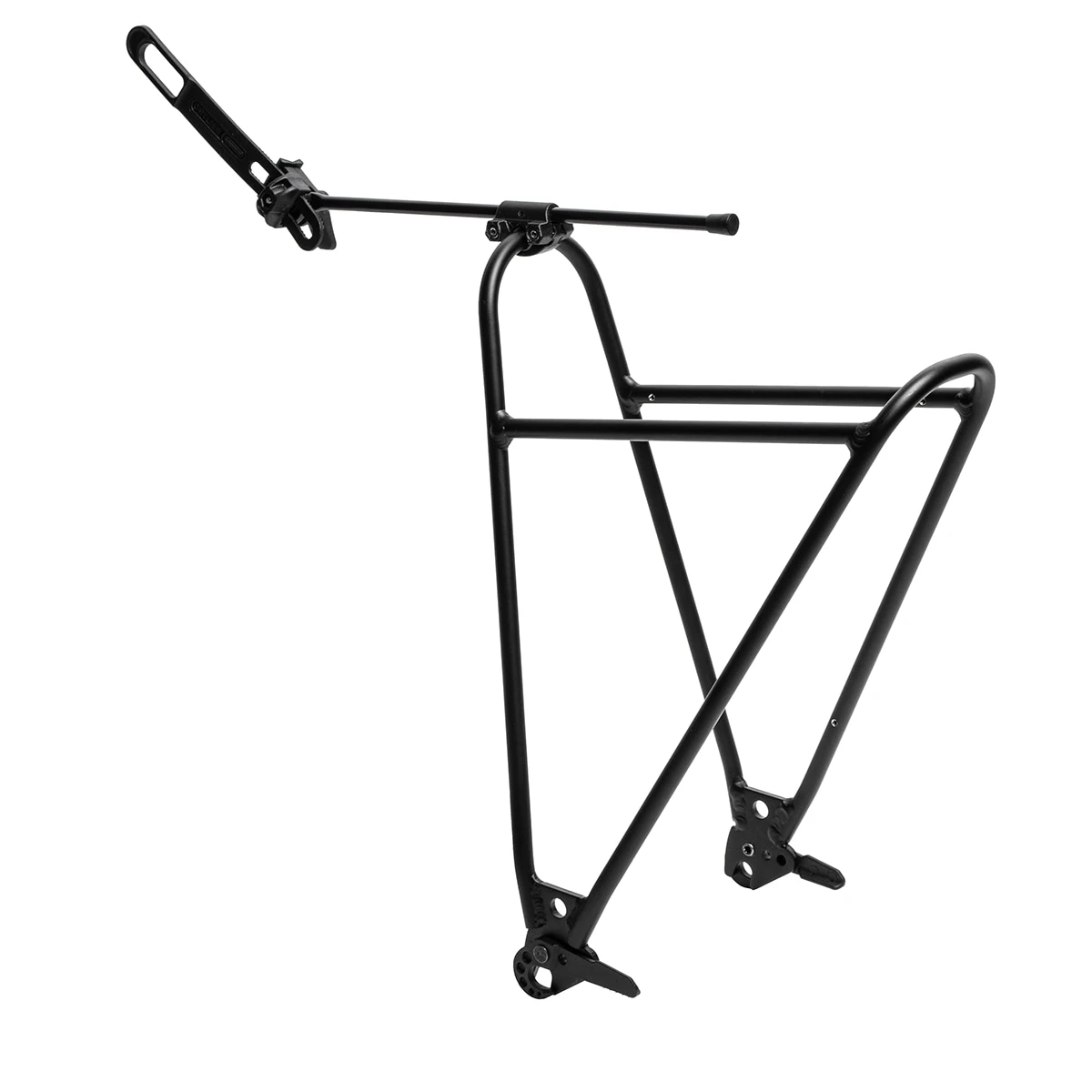

Ortlieb QUICK-RACK LIGHT Luggage Rack

Installed quickly and removed even quicker!
The ORTLIEB QUICK-RACK LIGHT bicycle rear rack is reduced to the essentials for a lower weight and can be installed and removed from your bike in a flash. The quick-release function allows you to attach and remove the clever luggage carrier in seconds.

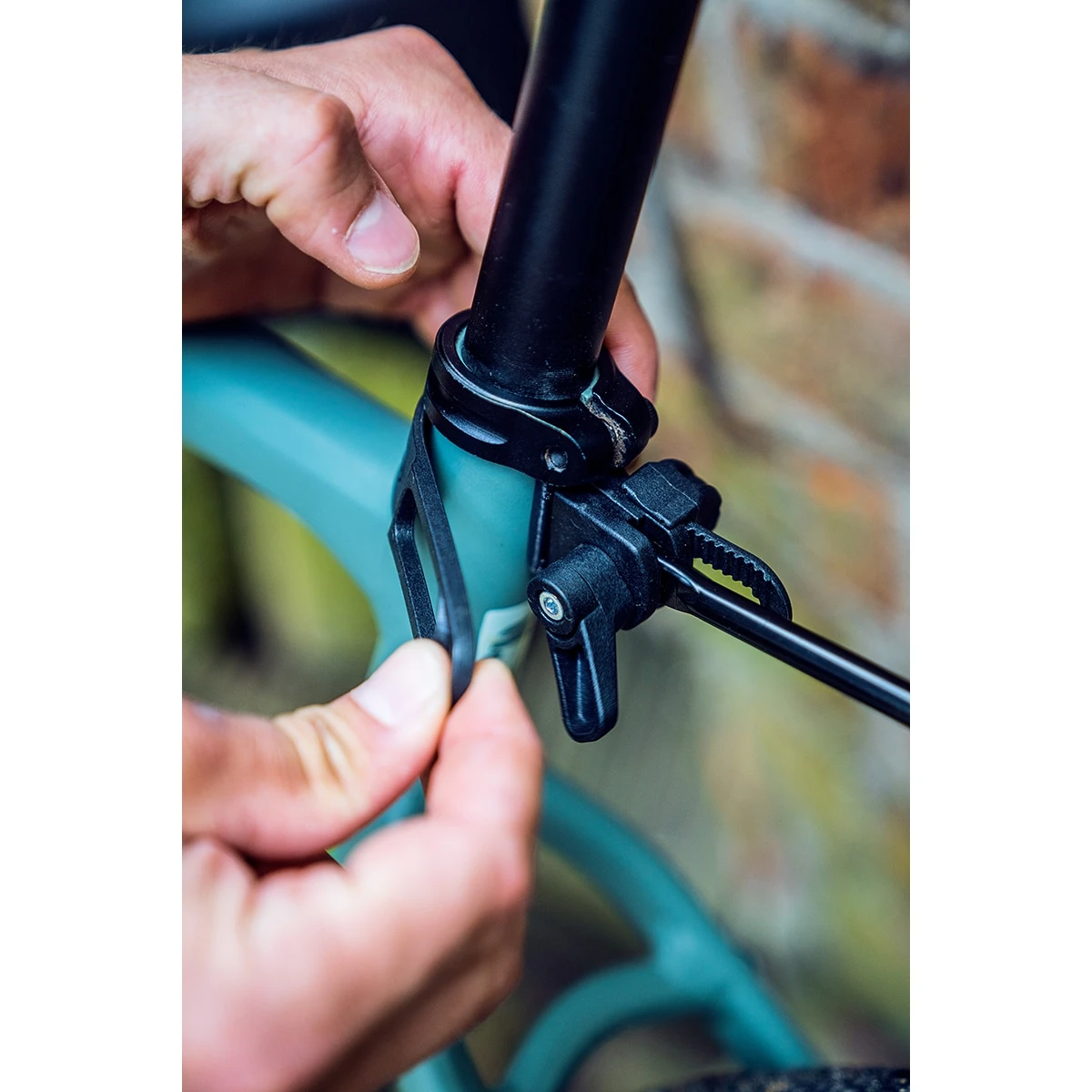

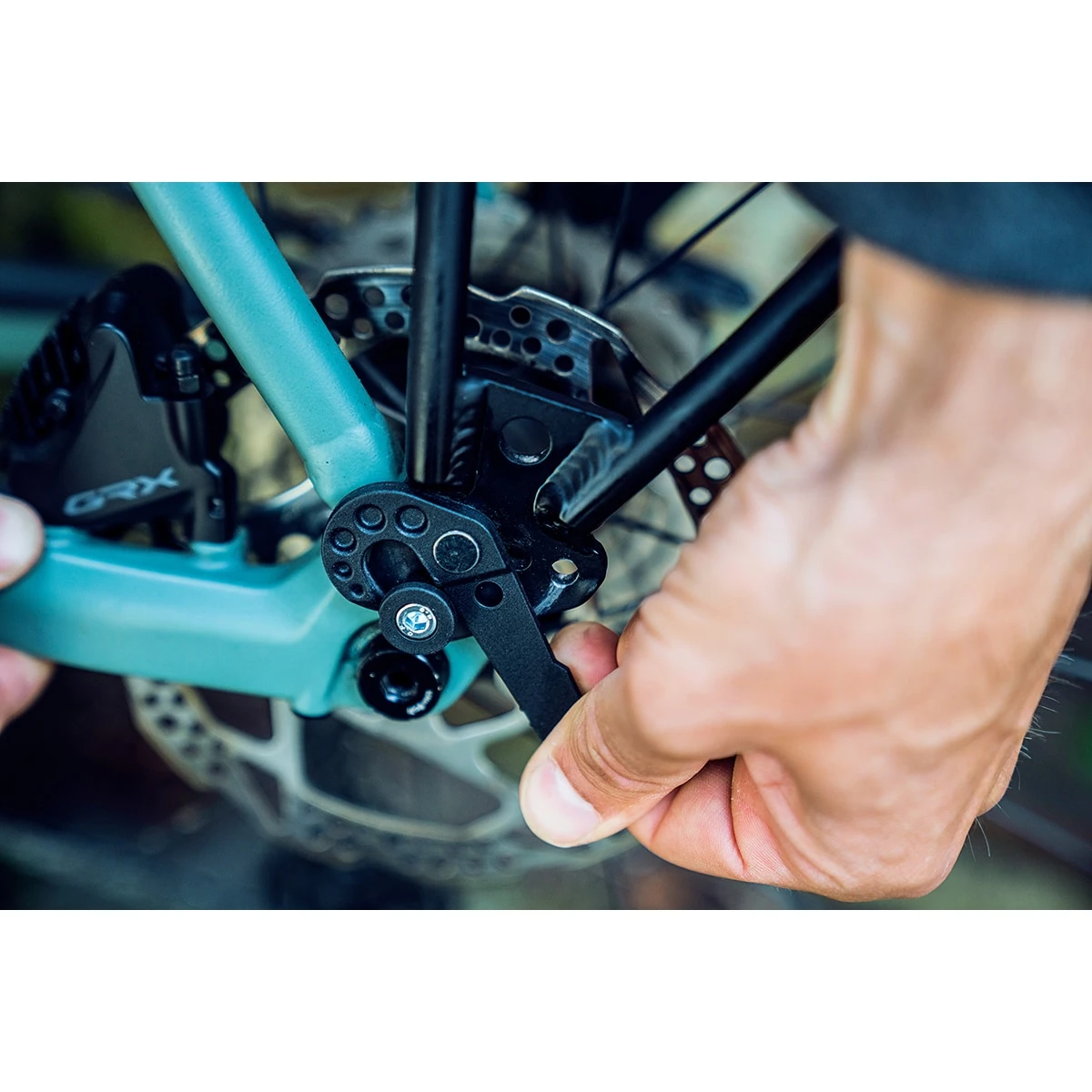

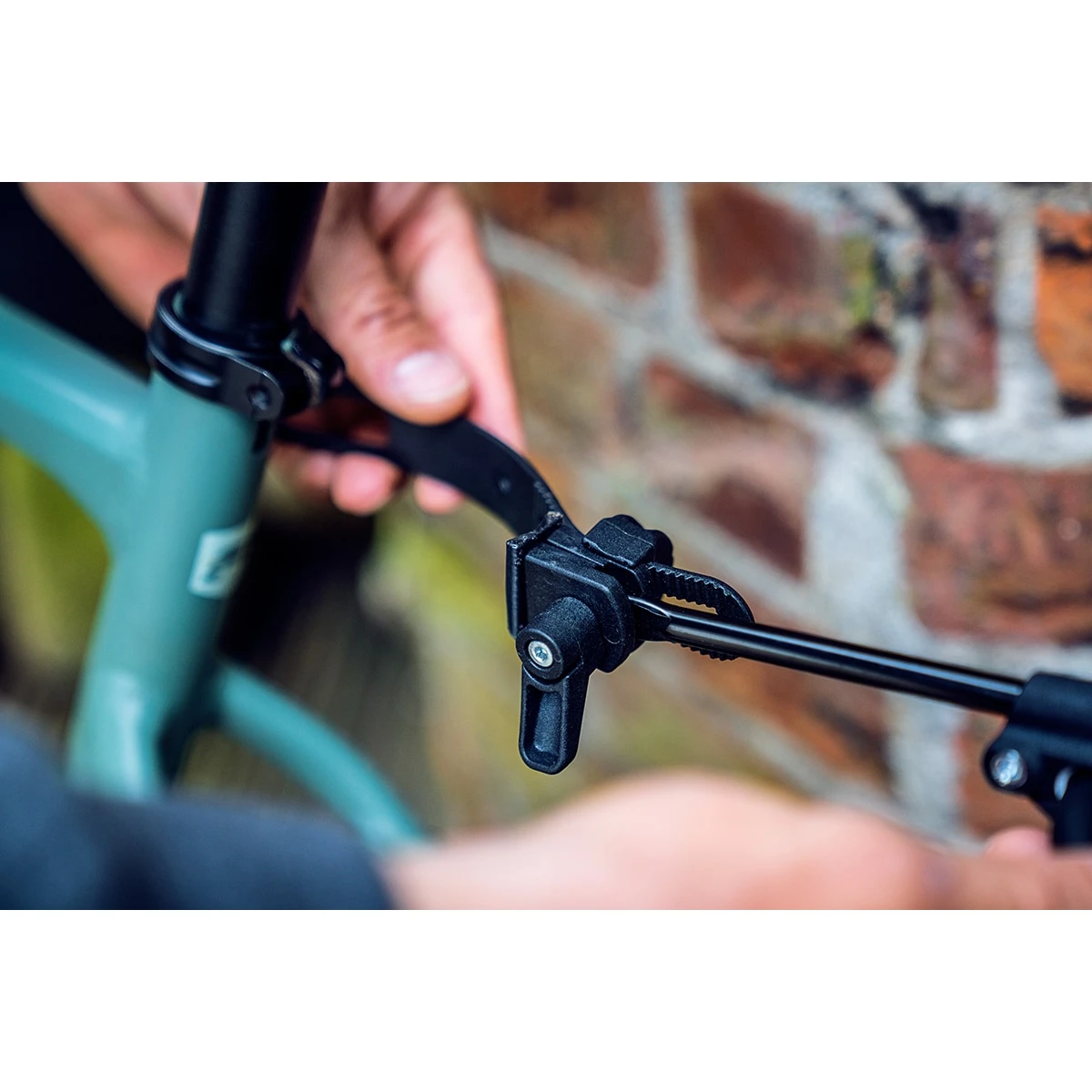

In a first step, the bolt-on contact points are attached to the eyelets on the lower seatstays of your bike to reliably secure the luggage rack. The integrated levers at these contact points then allow you to attach the rear rack. In a second step, the carrier is secured to the seat tube or seat post via the upper fixation with a sturdy mounting rubber – and the Ortlieb QUICK-RACK is ready for use. It is compatible with all QUICK-LOCK system bags from ORTLIEB (QL1/2.1/3/3.1/Top-Lock) and can carry loads of up to 15 kg.

To remove the rear rack, simply loosen the fixation on the seat tube and undo the two locking levers on the contact points. That’s it! The two support points on the eyelets remain on your bicycle.

Details:
• Lightweight luggage rack with QUICK RELEASE system for quick installation and removal
• Allows for the attachment of compatible bicycle bags with QL1/2.1/3/3.1 and TOP-LOCK system
• QL3/3.1 support elements can be removed
• For 26” and 28” (Attention: Limited compatibility with 29”)
• Horizontal and vertical struts with 10mm diameter
• Two seat tube supports of different lengths for optimal adjustment

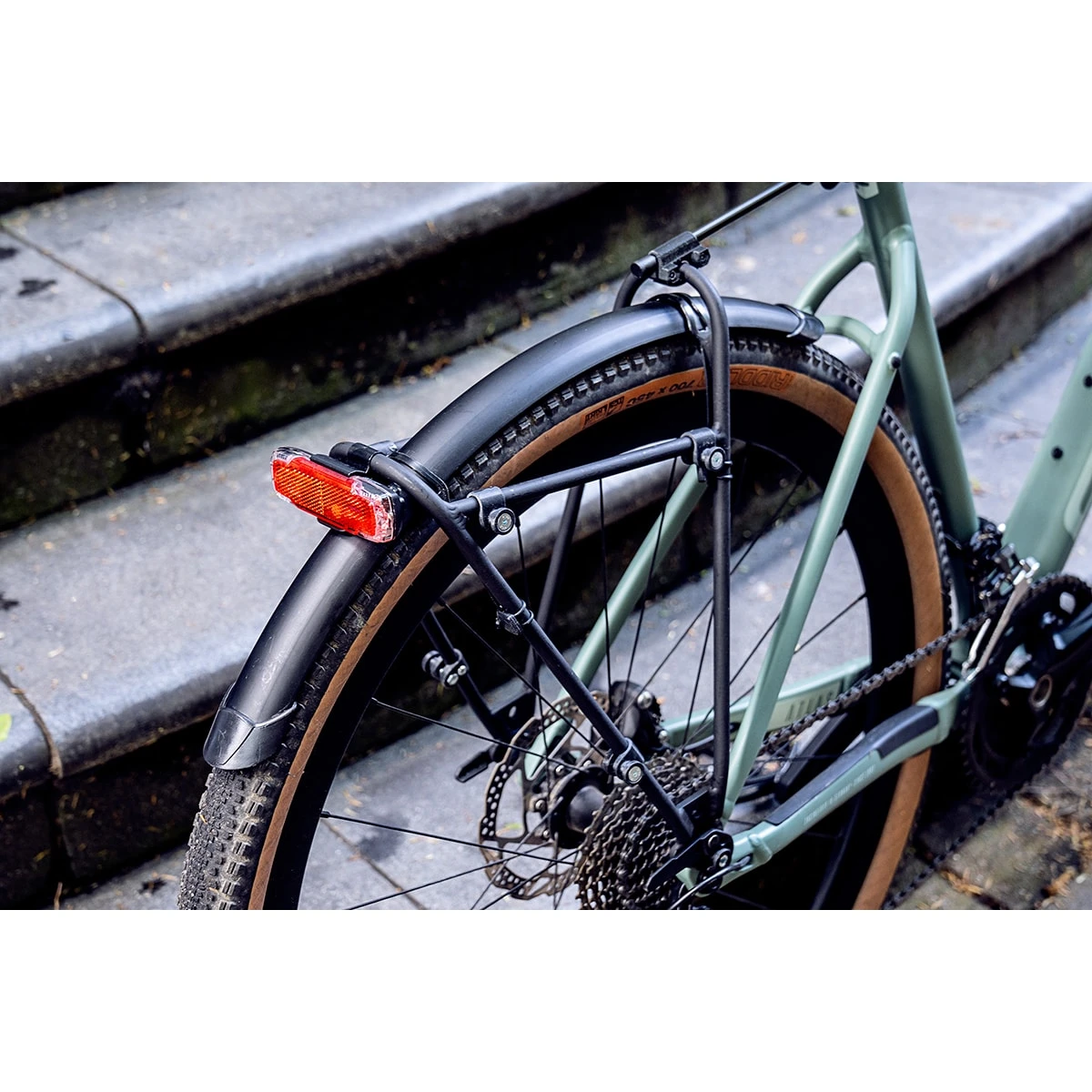

• Prepared for mounting a rear light (50mm bolt spacing)
• Incl. mounting set for bicycle frames with M5 or M6 threaded eyelets

Technical details:
• Material: aluminium
• Compatible wheel sizes: 26“ and 28“ (limited compatibility with 29”)
• Tube diameter: 10 mm
• Max. installation width: 190 mm
• Load capacity: max. 15 kg
• Weight: approx. 440 g

ATTENTION:
The luggage rack is NOT suitable for mounting and using child bike seats and for attaching bicycle trailers!

Note:
• For direct installation, it is essential that there are two mounting points with a metric 5mm or 6mm thread on the frame!
• If your frame does not have these mounting points, you can install the rack using the optional ORTLIEB QUICK RACK SEAT STAY ADAPTER set (prod. code: 2321534, NOT suitable for carbon frames!).
• The THRU-AXLE M6-CONNECTOR adapter thru axle (prod. code: 2351000), is required when mounting via the thru axle.

In the box:
• 1 ORTLIEB QUICK-RACK LIGHT Luggage Rack
• Incl. fastening material for mounting on luggage carrier threads (M5, M6)
• Long mounting strut for the seat tube (300 mm)
• Preparation for separately available rear light
• ORTLIEB QL3/QL3.1 mounting elements

Optional accessories (subject to availability):
• ORTLIEB QUICK RACK SEAT STAY ADAPTER Set (prod. code: 2321534)
• ORTLIEB THRU-AXLE M6-CONNECTOR adapter thru axle (prod. code: 2351000)
• ORTLIEB QUICK RACK MUDGUARD (prod. code: 2321535)

Tip:
The manufacturer recommends using frame protection film at the contact points to prevent scratches and damage to the paintwork.


Manufacturer: Ortlieb Sportartikel GmbH, Rainstraße 6, 91560 Heilsbronn, Germany, www.ortlieb.com
